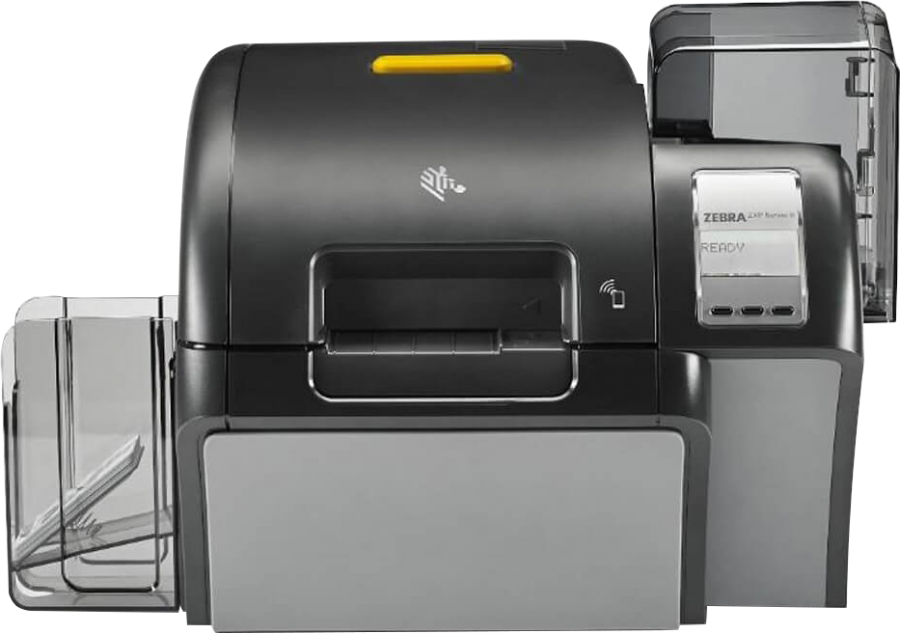

Zebra ZXP Series 9

PRINTING

• Dye diffusion retransfer
• Full color or monochrome retransfer printing
• Single-or dual-sided printing
• Max print speed single-side 190 cph*
• Max print speed dual-side 180 cph*
• User-selectable print modes: standard and fine
• Photo-quality images
• Over-the-edge printing on standard CR80 media

STANDARD FEATURES

• USB and Ethernet connectivity
• Single-card feed capability
• 150 card capacity feeder (30 mil)
• 15 card capacity reject hopper (30 mil)
• 100 card capacity output hopper (30 mil)
• i Series™ intelligent media technology
• Auto-calibration of media
• 21-character, 6 line LCD operator display
• 304 dpi (12.0 dots/mm) print resolution
• 64 MB memory standard
• Lifetime warranty on printhead
• 2-year limited warranty on printer
• Microsoft ® Windows certified drivers
• Kensington physical lock capable

OPTIONS AND ACCESSORIES

• Laminator - single-sided and dual-sided
• Lockable enclosure/card feeder
• Zebra OneCare service programs
• Card input hopper (150 cards 30 mil)

ENCODING OPTIONS & SPECIFICATIONS

• ISO 7816 Smart Card Contact Station for third-party external contact encoders
• Magnetic stripe encoder
• Encoding over Ethernet

ZMOTIF SOFTWARE

• ZMotif SDK support and sample code
• Microsoft Windows Certified Printer Drivers with toolbox utility features: Windows 8, Windows 2012, Windows 10, Windows 2008, Windows 7
• CardStudio card design and issuance software
• Zebra Virtual PrintWare software support

DRIVER FEATURES

• Graphical card orientation setting to visualize card printing setup and configuration
• Card source and card type selection
• Complete graphical control over area and element selection of black extraction parameters
• Auto sensing of ribbon type, laminator and smart card encoding options

TOOLBOX UTILITY FEATURES

• Printer configuration tools and utilities for complete control over all printer functions and features
• Optional password protection settings and user role-based security settings prevent accidental or unauthorized driver or printer configuration changes
• Complete technology card management enables setup and testing of all printer and encoder features and functionality
• Printer test cards and diagnostics utilities ensure error-free printing and fast troubleshooting capabilities

ZMOTIF SDK

• Downloadable SDK for custom applications
• SDK enables third parties to quickly add advanced print and encoding features to the ZXP Series 9 printer
• Capabilities include direct access to PC/SC Smart Card encoder driver and job control over print job specifications
• Support for complete Uv printer and inhibit panel support

SUPPLIES

• Zebra i Series intelligent technology uses RFID tags to authenticate and automate color ribbons, transfer film and laminate
• Specially designed cleaning supplies simplify preventative maintenance

True Colours i Series Ribbon

• YMCK 4 panel: 625 images/roll
• YMCKK 5 panel: 500 images/roll
• YMCUvK 5 panel: 500 images/roll
• YMCKI 5 panel: 500 images/roll
• YMCKKI 6 panel: 415 images/roll
• YMC 3 panel: 800 images/roll
• Monochrome black: 2500 images/roll
• True Colours i Series Transfer Film:
• Clear: 1250 single-sided/625 dual-sided cards/roll

CARD SPECIFICATIONS

• Card thickness: 30 — 40 mil
• Card size: ISO 7810 format, Type ID-1, CR-80 size
• Card material: PVC and composite, ABS cards, PET, PET-G, and Teslin® composite**
• Specialty cards: transparent (IR-blocked) or translucent card 30 mil (clear and colored)**
• Technology cards: contact and contactless smart cards, UHF cards**

COMMUNICATIONS INTERFACES

• USB 2.0
• USB supports plug-and-play printer identification
• 10/100 Ethernet

ELECTRICAL

• Auto-switching single-phase AC power
• 100V~240V AC and 50-60 Hz

PHYSICAL PRINTER

• Height (w/ card hoppers): 13.2”/334 mm
• Width (w/ card hoppers): 18.75”/476 mm
• Depth: 20.4”/519 mm
• Weight (printer only): 27.5 lbs./12.5 kg

ENVIRONMENTAL

• Operating Temperature: 59º F/15º C to 95º F/35º C
• Storage Temperature: 23º F/-5º C to 131º F/55º C
• Operating Humidity: 20% to 80% inclusive, non-condensing
• Storage Humidity: 10% to 90% inclusive, non-condensing
• Shipping Temperature: -40º F/-40º C to 140º F/60º C
• Shipping Humidity: 10% to 90% inclusive, non-condensing
• Media should not be above 140º F/60º C for longer than 200 hours, and above 90% relative humidity at 104º F/40º C for longer than 100 hours

NOTE: For optimum print quality and printer performance, use of Genuine Zebra supplies is recommended.

* Print speed based on click to drop, average print coverage, with USB connectivity, card per hour (cph)

** Please contact your Zebra reseller for qualification of card
