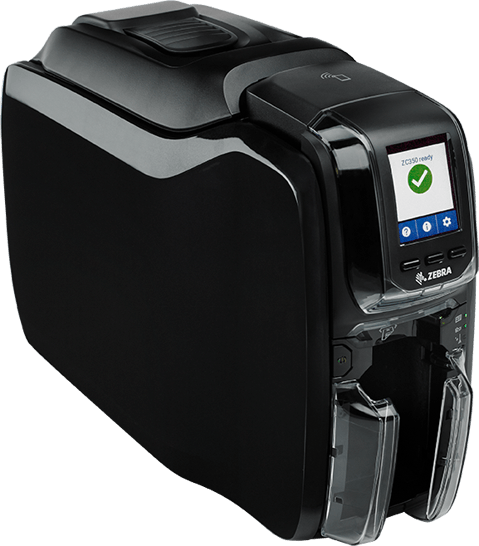

Zebra ZC350

STANDARD FEATURES

• 300 dpi (11.8 dots/mm) print resolution
• 2 GB flash memory
• Image size: 1006 x 640 pixels
• Auto calibration of ribbon
• USB 2.0 and Ethernet 10/100 connectivity
• 100 card capacity auto-adjusting input hopper (30 mil)
• 100 card capacity output hopper (30 mil)
• Manual card feeding capability with LED bezel
• Graphical color LCD
• 3 Tricolor printer status indicator lights
• Kensington® secure lock slot
• Print Touch NFC tag for online printer help and documentation access
• Printer host authentication
• Data encryption
• Two-year unlimited warranty on printer and printhead

PRINTING SPECIFICATIONS

• Dye-sublimation thermal transfer direct to card print method
• Full-color or monochrome printing
• Single and dual-sided printing
• Edge-to-edge printing on standard CR-80 media

Printing throughput (cards per hour) based on batch printing with USB connectivity. Times may vary depending on the computer configuration.

• 225 cards/hour single-sided YMCKO
• 150 cards/hour dual-sided YMCKOK
• 1,000 cards/hour single sided monochrome
• 500 cards/hour dual sided monochrome

MEDIA SPECIFICATIONS

• YMCKO* - 200
• YMCKO* - 300
• YMCKOK* - 200
• ½ YMCKO* - 400
• ½ YMCKOKO* - 250
• YMCKLL* - 200
• YMCPKO* - 200
• SrDYMCKO* - 200
• KrO* - 700
• KdO* - 700
• Holographic Overlay* - 500
• Black Monochrome* - 2000
• Black Monochrome - 1500
• White Monochrome* - 1500
• Red Monochrome - 1500
• Blue Monochrome - 1500
• Gold Monochrome - 1500
• Silver Monochrome - 1500

Ribbon availability may vary by region.

• *Zebra intelligent technology automatically detects and authenticates ribbon
• Cleaning roller is included with each ribbon
• Two available cleaning kit options: your choice of two (2) or five (5) isopropyl alcohol cleaning cards (1,000 images/card)

MEDIA SPECIFICATIONS

Card Compatibility:
NOTE: For optimum print quality and printer performance, use of Genuine Zebra supplies is recommended.

• Card Thickness: 10-40 mil
• Card Size: CR80 ISO 7810 ID-1 format, CR79
• Card Material: PVC and PVC composite
• Adhesive back and writable back cards
• Spot color or monochrome printing only on < 20 mil thick cards and CR79 cards

OPERATING CHARACTERISTICS

Environmental

• Operating Temperature: 59º F to 95º F/15º C to 35º C
• Storage Temperature: 23º F to 158º F/-5º C to 70º C
• Operating Humidity: 20% to 80% non-condensing
• Storage Humidity: 20% to 90% non-condensing
• Media Storage:
• Temperature: 41º F to 77º F/5º C to 25º C
• Humidity: 35% to 65% non-condensing

Electrical

• Auto-switching single-phase AC power
• Operating range: 90-132VAC and 190-264VAC RMS
• Frequency range: 47-63 Hz
• FCC Class A

PHYSICAL CHARACTERISTICS

Single-sided:

• Dimensions: 10.2in. H x 6.2in. W x 15.1in. D; 258mm H x 157mm W x 383mm D
• Weight: 8.8lbs (4.0kg)

Dual-sided:

• Dimensions: 10.2 in. H x 6.2 in. W x 18.4 in. D; 258mm H x 157mm W x 468mm D
• Weight: 9.7 lbs (4.4 kg)

COMMUNICATIONS AND INTERFACE CAPABILITIES

• USB 2.0 — Standard
• Built-in 10/100 Ethernet — Standard
• 802.11ac with MFi — Optional

ENCODING OPTIONS AND SPECIFICATIONS

• Magnetic stripe encoder – ISO 7811 (new and pre-encoded; tracks 1, 2, and 3; high and low coercivity; stripe down and stripe up with duals-sided printers) 1
• Combined MIFARE® ISO 14443 A & B (13.56 MHz) contactless with 1 SAM Module Slot with support for reading Prox ISO 11784 and iCLASS ISO 15693 and ISO 7816 Contact Encoder with EMV level 1 certification, and PC/SC compliance1,2
• ISO 7816 Smart Card Contact Station for third party external contact encoders1
• Third party contactless encoder integration kit1

PRINTER DRIVERS

• Windows Server® 2003 (32 bit)
• Windows Server 2008 (32 and 64 bit),
• Windows 7 (32 bit and 64 bit)
• Windows 8 and Win 8 Pro (32 bit and 64 bit
• compatible)
• Windows Server 2012 (64 bit)
• Windows 10 (32 bit and 64 bit)
• Windows drivers include:
• Color coded printer status indicators for the operator
• Black panel extraction and controls for specialty ribbon panels with image preview
• Configuration utility to limit access by operators to change image quality and printer settings
• Advanced printer configuration, security settings and diagnostics capabilities

ADDITIONAL OPTIONAL FEATURES

• Card flipper for dual-sided printing*
• 10 card reject bin is standard with dual-sided printers*
• Lockable enclosure*

PRINT DNA

• One SDK download supports Android, Java and Windows environments
• Easily build card-printing apps with complete control over print functionality from Windows, Linux, Mac OS and Android environments
• Enable card printing from Android mobile devices
• Incorporate encryption and host authentication
• Includes documentation and source code examples

CardStudio
Included with the printer, this simple-to-learn and feature-rich card design software that makes it easy to design loyalty cards, gift cards, ID cards and more.

Print Touch
With a single tap, you can use Android-based mobile devices to access how-to and troubleshooting information to help keep printers up, running and available.
About Print DNA. Print DNA propels your Zebra Link-OS for Card printers into a class of their own, providing Zebra-only software tools that make life easier for everyone who touches your printers, from printing to printer management and application development. Features are subject to availability. Specifications are subject to change without notice.
