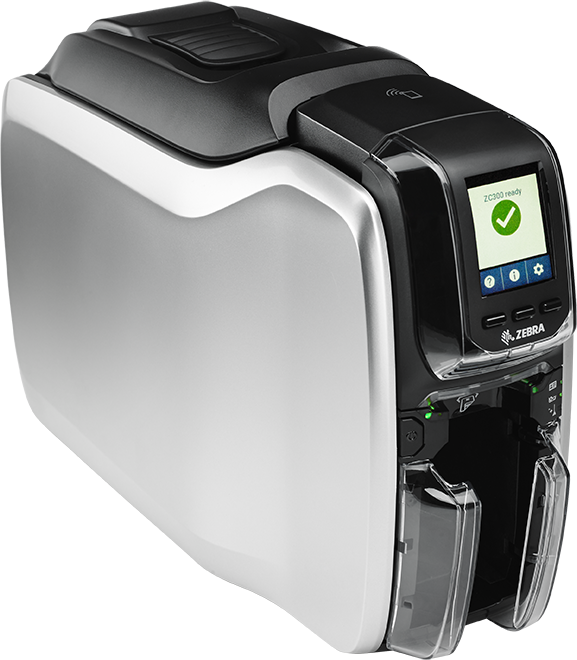

Zebra ZC300

STANDARD FEATURES

• 300 dpi (11.8 dots/mm) print resolution
• 2 GB flash memory
• Image size: 1006 x 640 pixels
• Auto calibration of ribbon
• USB 2.0 and Ethernet 10/100 connectivity
• 100 card capacity auto-adjusting input hopper (30 mil)
• 100 card capacity output hopper (30 mil)
• Manual card feeding capability with LED bezel
• Graphical color LCD
• 3 Tricolor printer status indicator lights
• Kensington® secure lock slot
• Print Touch NFC tag for online printer help and documentation access
• Printer host authentication
• Data encryption
• Two-year unlimited warranty on printer and printhead

PRINTING SPECIFICATIONS

• Dye-sublimation thermal transfer direct to card print method
• Full-color or monochrome printing
• Single and dual-sided printing
• Edge-to-edge printing on standard CR-80 media

Printing throughput (cards per hour) based on batch printing with USB connectivity. Note that times may vary depending on the computer configuration.

• 200 cards/hour single-sided YMCKO
• 140 cards/hour dual-sided YMCKOK
• 900 cards/hour single sided monochrome
• 450 cards/hour dual sided monochrome

MEDIA SPECIFICATIONS

Supplies Specifications:
NOTE: The ZC300 printer is designed to work only with Zebra
genuine ribbons. Ribbons are included in a simple-to-load cartridge.

• YMCKO* - 200
• YMCKO* - 300
• YMCKOK* - 200
• ½ YMCKO* - 400
• ½ YMCKOKO*  - 250
• YMCKLL* - 200
• YMCPKO* - 200
• SrDYMCKO* - 200
• KrO* - 700
• KdO* - 700
• Black Monochrome* - 2000
• Black Monochrome - 1500
• White Monochrome* - 1500
• Red Monochrome - 1500
• Blue Monochrome - 1500
• Gold Monochrome - 1500
• Silver Monochrome - 1500

Ribbon availability may vary by region.

• *Zebra intelligent technology automatically detects and authenticates ribbon
• Cleaning roller is included with each ribbon
• Two available cleaning kit options: your choice of two (2) or five (5) isopropyl alcohol cleaning cards (1,000 images/card)

MEDIA SPECIFICATIONS (CONTINUED)

• Card Thickness: 10-40 mil
• Card Size: CR80 ISO 7810 ID-1 format, CR79
• Card Material: PVC and PVC composite
• Adhesive back and writable back cards
• Spot color or monochrome printing only on < 20 mil thick cards and CR79 cards

OPERATING CHARACTERISTICS

Environmental

• Operating Temperature: 59º F to 95º F/15º C to 35º C
• Storage Temperature: 23º F to 158º F/-5º C to 70º C
• Operating Humidity: 20% to 80% noncondensing
• Storage Humidity: 20% to 90% noncondensing
• Media Storage:
• Temperature: 41º F to 77º F/5º C to 25º C
• Humidity: 35% to 65% non-condensing

• Auto-switching single-phase AC power
• Operating range: 90-132VAC and 190-264VAC RMS
• Frequency range: 47-63 Hz
• FCC Class A

PHYSICAL CHARACTERISTICS

Dimensions

• Single-sided: 10.2 in. H x 6.2 in. W x 15.1 in. D; 258 mm H x 157 mm W x 383 mm D
• Dual-Sided: 10.2 in. H x 6.2 in. W x 18.4 in. D; 258 mm H x 157 mm W x 468 mm D

Weight

• Single-sided: 8.8 lbs (4.0kg)
• Dual-Sided: 9.7 lbs (4.4 kg)

COMMUNICATIONS AND INTERFACE CAPABILITIES

• USB 2.0 — Standard
• Built-in 10/100 Ethernet — Standard
• 802.11ac with MFi — Optional

ENCODING OPTIONS AND SPECIFICATIONS

• Magnetic stripe encoder — ISO 7811 (new and pre-encoded; tracks 1, 2, and 3; high and low coercivity; stripe down and stripe up with duals-sided printers) *
• Combined MIFARE® ISO 14443 A & B (13.56 MHz) contactless with 1 SAM Module Slot and ISO 7816 Contact Encoder with EMV level 1 certification, and PC/SC compliance* (optional module with support for reading Prox® ISO 11784 and iCLASS ISO 15693)
• ISO 7816 Smart Card Contact Station for third party external contact encoders*
• Third party contactless encoder integration kit*

*Field upgradeable options

PRINTER DRIVERS

• Windows Server® 2003 (32 bit)
• Windows Server 2008 (32 and 64 bit),
• Windows 7 (32 bit and 64 bit)
• Windows 8 and Win 8 Pro (32 bit and 64 bit
• compatible)
• Windows Server 2012 (64 bit)
• Windows 10 (32 bit and 64 bit)

• Color coded printer status indicators for the operator
• Black panel extraction and controls for specialty ribbon panels with image preview
• Configuration utility to limit access by operators to change image quality and printer settings
• Advanced printer configuration, security settings and diagnostics capabilities

Linux Ubuntu Apple iOS 10.2
Please see www.zebra.com for an up-to-date listing of supported systems.

ADDITIONAL OPTIONAL FEATURES

• Card flipper for dual-sided printing*
• 10 card reject bin is standard with dual-sided printers*
• Lockable enclosure*

*Field upgradeable options

PRINT DNA

Multiplatform Software Development Kit (SDK)
Windows C#/.Net and Java Printer Software Development Kit (SDK)

• One SDK download supports Android, Java and Windows environments
• Easily build card-printing apps with complete control over print functionality from Windows, Linux, Mac OS and Android environments
• Enable card printing from Android mobile devices
• Incorporate encryption and host authentication
• Includes documentation and source code examples
