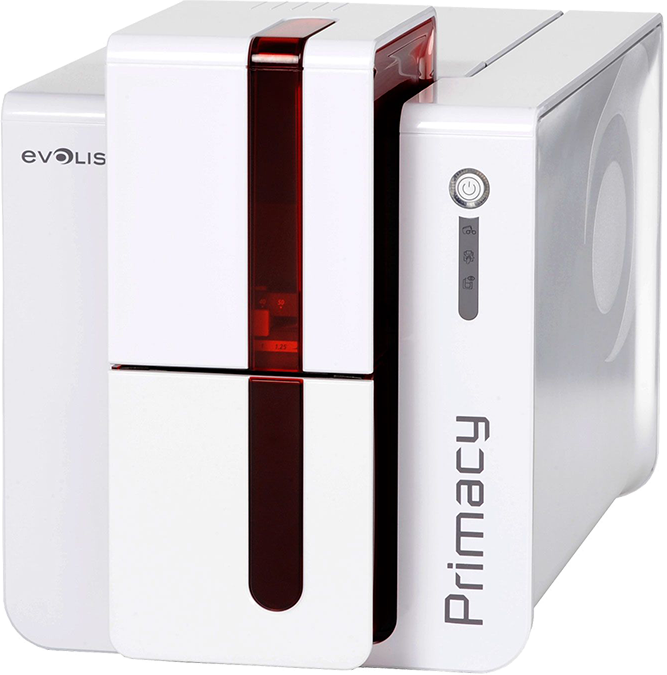

Evolis Primacy

General Features

• Single-sided or dual-sided printing module, edge to edge printing
• Color dye sublimation, monochrome thermal transfer
• 300 dpi print head (11.8 dots/mm)
• 16MB Memory (RAM)

Print Speed

• Color (YMCKO): 190 - 210 cards /hour
• Monochrome: 600 - 850 cards /hour

Card Specifications

• Input hopper capacity: 100 cards (0.76 mm - 30 mil)
• Output hopper capacity: 100 cards (0.76 mm - 30 mil)
• Reject tray: 30 cards (0.76 mm - 30 mil)
• Card thickness: 0.25 to 1.25 mm (10 to 50 mil), gauge adjustment
• Types of cards: All PVC, Composite PVC cards, PET, ABS(1) and special varnished cards
• Card format ISO CR80 - ISO 7810 (53.98mm x 85.60 mm)

Evolis High Trust Ribbons

To maximize the quality and durability of printed cards, the lifespan of the print head and the overall printer reliability, use Evolis High Trust® ribbons.

• Automatic identi?cation and setting
• Delivered in a drop-in cassette for easy handling
• Ribbon saver for monochrome printing
• Ribbon capacity:
• YMCKO: 250 prints / roll
• YMCKO-K: 200 prints / roll
• ½ YMCKO: 400 prints / roll
• KO: 600 prints / roll
• Monochrome ribbon: 1000 prints / roll(1)
• Hologram varnish: 400 prints / roll

Connectivity

• USB 1.1 (compatible 2.0)
• Ethernet TCP-IP 10BaseT, 100BaseT (Traf?c Led)

Display

• Printer LEDs
• Graphical noti?cations from the printer:
• Empty input hopper alert, cleaning alerts, empty/low level ribbon alert

Software

• Delivered with Evolis Premium Suite® for Windows:
• Printer driver
• Evolis Print Center for printer administration and settings
• Printer Manager for bi-directional graphical notiJcation(3)
• Compatible with Windows: XP SP3; Vista 32/64, W7 32/64(4)
• Delivered with eMedia CS Card Designer, Standard Edition, unlimited version (compatible with Windows™ 7 and Vista)
• Delivered with a driver for Mac OS X (from 10.5 onwards)
• Other OS: Linux upon request

Warranty

• 3-year warranty (printer and printhead)

Size and Weight

• Size: Height 247mm (9.72’’) x length 205mm (8.07’’) x width 381 mm (14.99’’) With reject tray: Height 247mm (9.72’’) x length 205mm (8.07’’) x width 481 mm (18.93’’)
• Weight: 4.02 kg (8.86 lbs)

Sound

Sound pressure in assistant positions LpAm (colour mode YMCKO)

• When operating: 48dB (A)
• In sleep mode: background noise level

Safety

• Support for Kensington® security lock
• Data encryption for magnetic encoding

Packing Content

• Printer
• CD-ROM with printer drivers, user manuals, and eMedia CS
• Cleaning kit
• USB cable
• Reject tray
• Power supply and cord

Options and Accessories

• Colors available : Fire Red & Brilliant Blue
• Upgrade kit for dual-sided printing
• Encoding options can be combined. Upgrade can be carried out on-site, by adding new modules:
• Magnetic stripe encoder, smart contact station, smart encoding unit, contactless encoding unit

Environmental Features, Certifications and Statement of Compliance

• Standby modes & reduced energy consumption
• CE, FCC, IEC, VCCI, CCC(6), KC(6)
• ErP 2009/125/CE, ENERGY STAR, ROHS

Power

• Power supply: 100-240 Volts AC, 50-60 Hz, 1,8A
• Printer: 24 Volts DC, 3 A

Environment

• Min/max operating temperature: 15° / 30 °C (59° / 86 °F)
• Humidity: 20% to 65% non-condensing
• Min/max storage temperature: -5° / +70 °C (23° / 158 °F)
• Storage humidity: 20% to 70% non-condensing
• Operating ventilation: open air

Resident Fonts

• Arial 100, Arial bold 100
• Barcode: Code 39, Code 128, EAN 13, 2/5 interleave
