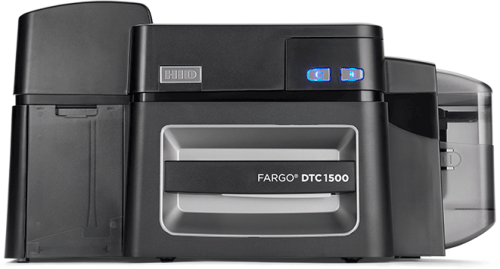

Fargo DTC1500

Print Method: Dye Sublimation / Resin thermal transfer

Resolution: 300 dpi (11.8 dots/mm) continuous tone

Colors: Up to 16.7 million / 256 shades per pixel

Print Speed**: 6 seconds per card (K*); 16 seconds per card (YMCKO*); 24 seconds per card (YMCKOK*)

Accepted Standard Card Sizes: CR-80 (3.375in L x 2.125in W / 85.6mm L x 54mm W); CR-79 (3.313" L x 2.063" W / 84.1mm L x 52.4mm W)

Print Area: CR-80 edge-to-edge (3.36in L x 2.11in W / 85.3 mm L x 53.7 mm W); CR-79 (3.3" L x 2.04" W / 83.8 mm L x 51.8 mm W)

Accepted Card Thickness: .009in - .040in / 9 mil - 40 mil / .229 mm - 1.016 mm

Accepted Card Types: PVC or polyester cards with polished PVC finish; monochrome resin required for 100% polyester cards; optical memory cards with PVC finish; rewrite

Input Hopper Card Capacity: 100 cards (.030in / .762 mm)

Output Hopper Card Capacity: Up to 100 cards. (.030" / .762 mm)

Card Cleaning: Card cleaning roller integrated into ribbon cartridge; cleaning roller is automatically replaced with each ribbon change

Memory: 32 MB RAM

Software Drivers: Windows® 7, 8, 8.1 and 10 (32 bit & 64 bit) / Windows Server 2003, 2008, 2012

Interface: USB 2.0, Standard Ethernet with internal print server (Note: Ethernet optional on BIS-Certified Units)

Operating Temperature: 65° to 80° F / 18° to 27° C

Humidity: 20–80% non-condensing

Dimensions:

• Printer: 9.8" H x 18.7" W x 9.2" D / 249 mm H x 475 mm W x 234 mm D
• (Printer + lam): 18.9" H x 18.7" W x 9.2" D / 480 mm H x 475 mm W x 234 mm D

Weight

• (Printer): 11 lbs / 5 Kg
• (Printer + lam): 20 lbs / 9.1 Kg

Agency Listings: Safety: UL 60950-2, CSA C22.2 (60950-07), and CE; EMC: FCC Class A, CE (EN 55022 Class A, EN 55024), CCC, BSMI, KC

Supply Voltage: 100-240Vac, 50-60Hz, 1.6 Amps max

Supply Frequency: 50 Hz / 60 Hz

Environmental Features: GreenCircle® Certified card printer (base models only without encoders), refillable supply cartridges (ECO), and rewrite technology - no ribbon required

Warranty: Printer – three years; printhead – three years, unlimited pass with UltraCard®

Software: Swift ID™ embedded badging application, FARGO Workbench™ diagnostic utility with Color Assist™ spot-color matching

Display: Color changing status buttons

* Indicates the ribbon type and the number of ribbon panels printed where Y=yellow, M=magenta, C=cyan, K=resin black, O=overlay.

** Print speed indicates an approximate print speed and is measured from the time a card drops into the output hopper to the time the next card drops into the output hopper. Print speeds do not include encoding time or the time needed for the PC to process the image. Process time is dependent on the size of the file, the CPU, amount of RAM and the amount of available resources at the time of the print.
