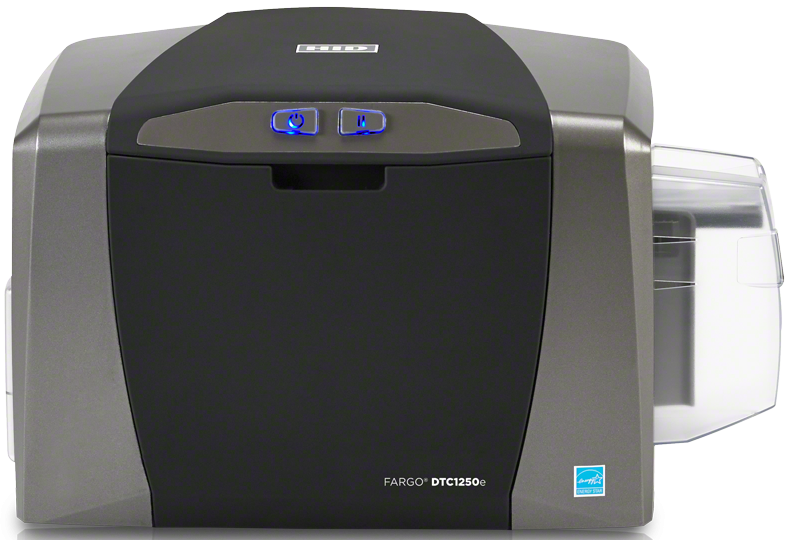

Fargo DTC1250e

Print Method: Dye-sublimation / resin thermal transfer

Resolution: 300 dpi (11.8 dots/mm) continuous tone

Colors: Up to 16.7 million / 256 shades per pixel

Print Ribbon Options: Options include easy-to-use ribbon with disposable ribbon cartridge (EZ) and more economical and eco-friendly refill ribbon for refill cartridge (ECO).

Both EZ and ECO

• Full-color with resin black and overlay panel, YMCKO, 100 prints
• Full-color with resin black and overlay panel, YMCKO, 250 prints
• Resin black (standard and premium), 1000 prints

ECO only

• Full-color half-panel with resin black and overlay panel, YMCKO, 350 prints

EZ only

• Resin green, blue, red and white, 1000 prints
• Silver and gold metallic, 500 prints
• Rewrite technology - no ribbon is required

Print Speed: 6 seconds per card (K); 8 seconds per card (KO); 16 seconds per card (YMCKO);

Accepted Standard Card Sizes: CR-80 (3.375in L x 2.125in W / 85.6 mm L x 54 mm W); CR-79 adhesive back (3.313in L x 2.063in W / 84.1 mm L x 52.4 mm W)

Print Area: CR-80 edge-to-edge (3.36in L x 2.11in W / 85.3 mm L x 53.7 mm W); CR-79 (3.3in L x 2.04in W / 83.8 mm L x 51.8 mm W)

Accepted Card Thickness: .009in - .040in / 9 mil - 40 mil / .229 mm - 1.016 mm

Accepted Card Types: PVC or polyester cards with polished PVC finish; monochrome resin required for100% polyester cards; optical memory cards with PVC finish; rewrite

Input Hopper Card Capacity: 100 cards (.030in / .762 mm)

Output Hopper Card Capacity: Up to 30 cards (.030in / .762 mm)

Card Cleaning: Card cleaning roller integrated into ribbon cartridge; cleaning roller is automatically replaced with each ribbon change

Memory: 32 MB RAM

Software Drivers: Windows® XP / Vista™ (32 bit & 64 bit) / Server 2003 & 2008 / Windows® 7 / Windows® 8 (32 bit & 64 bit)/

MAC OS X 10.5/10.6/10.7/10.8 / Linux

Interface: USB 2.0, optional Ethernet with internal print server

Operating Temperature: 65° to 80° F / 18° to 27° C

Humidity: 20—80% non-condensing

Dimensions: Single-sided printer: 8.8in H x 13.7in W x 7.9in D / 224 mm H x 348 mm W x 201 mm D

Weight: 7.5 lbs. / 3.4 Kg;

Agency Listings: Safety: UL 60950-2, CSA C22.2 (60950-07), and CE; EMC: FCC Class A, CE (EN 55022 Class A, EN 55024), CCC, BSMI, KC

Supply Voltage: 100-240Vac, 50-60Hz, 1.6 Amps max

Supply Frequency: 50 Hz / 60 Hz

Warranty: Printer — three years; printhead — three years, unlimited pass with UltraCard®

Options:

• Single wire Ethernet and USB 2.0 interface for inline printing and encoding (note: single wire Ethernet encoding is only available for iCLASS®, MIFARE®, and contact smart card encoding)
• Ethernet-enabled printer supports wireless accessory;
• Dual-sided printing module;
• Smart card encoding modules (contact/contactless);
• Magnetic stripe encoding module;
• Ethernet with internal print server;

Software: Swift ID™ embedded badging application, FARGO Workbench™ diagnostic utility with Color Assist™ spot-color matching

Display: Color changing status buttons
